Sterilization Barrier System Self-Sealing Sterilization Pouch

OThe medical adhesive tape can make rapid and efficient seal without any professional sealing devices;

OThe indicator’s color has significant change and no change  back;

OThe initial blue will turn to black based on steam sterilization method;

Oand will turn yellow from initial pink based on ETO sterilization method;

OThe three sided explosion-proof can efficiently prevent the pouch from bursting;

OThe transparent compound film can show what inside the pouch clearly in order to avoid errors

Vui lòng bật JavaScript trong trình duyệt của bạn để hoàn thành Form này.


Danh mục:

Mô tả

Intended Use

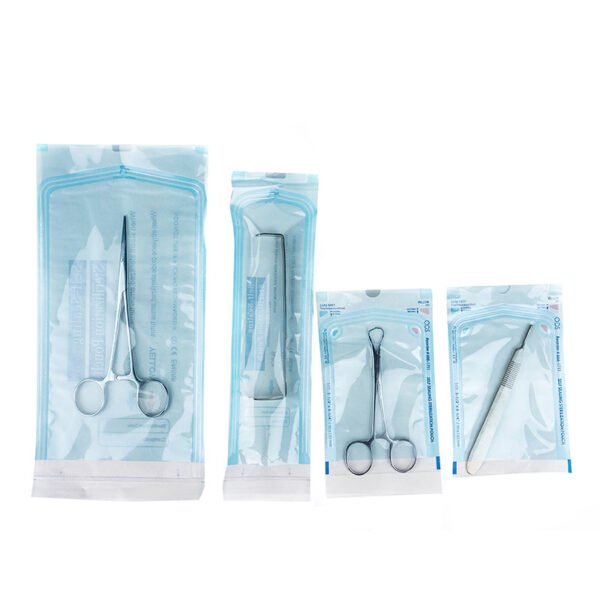

The self-sealing sterilization pouches are intended to provide health care workers with an effective method to enclose devices (skin and mucosal tissue contact) intended for sterilization in steam autoclaves and via Ethylene Oxide (EO). The pouch’s dual process indicators are designed to indicate to the user that the pouch has undergone either a Steam or EO sterilization process.

Characteristic                                                                     Specification


Process Indicator Exposure

 Steam:

Indicators turn from blue to black when processed 30 min at 121º C

EO: Indicators turn from pink to yellow when processed 40 min at 60º C, 60% RH, and EO concentration of 725 mg/L.



Material:60gsm/70gsm Medical Grade Paper/France Arjo Paper+Blue/White /Green Medical CPP/PET Compound Film +Medical Adhesive Tape

Manufacture Standard:ISO11607-1  EN868-5

Feature

OThe medical adhesive tape can make rapid and efficient seal without any professional sealing devices;

OThe indicator’s color has significant change and no change  back;

OThe initial blue will turn to black based on steam sterilization method;

Oand will turn yellow from initial pink based on ETO sterilization method;

OThe three sided explosion-proof can efficiently prevent the pouch from bursting;

OThe transparent compound film can show what inside the pouch clearly in order to avoid errors

Size(inch) Size(mm) Package Box Size CTN Size(mm) N.W. (kgs) G.W. (kgs)
2.25”x3.94” 57x100mm 40boxes 200pcs/box 60*105*60 325*235*270 6 7
2.25”x5.12” 57x130mm 40boxes 200pcs/box 60*135*60 325*285*270 7.8 88
2.76”x10.24” 70x260mm 20boxes 200pcs/box 72*265*60 325*280*315 9 10
3.25”x6.25” 83x160mm 20boxes 200pcs/box 85*165*60 360*325*190 6.3 6.9
3.54”x6.5” 90x165mm 20boxes 200pcs/box 92*170*60 360*325*205 7.2 8
3.54”x10.24” 90x260mm 20boxes 200pcs/box 92*265*60 385*285*320 5.8 6.4
5.32”x10.24” 135x260mm 10boxes 200pcs/box 138*265*60 325*280*295 8.7 9.7
5.32”x11.02” 135x280mm 10boxes 200pcs/box 138*285*60 325*300*300 9.8 10.5
5.32”x11.81” 135x300mm 10boxes 200pcs/box 138*305*60 325*300*320 10.5 11.5
5.32”x14.96” 135x380mm 10boxes 200pcs/box 138*385*60 405*300*320 13.5 14.5
6.10”x10.24” 155x260mm 10boxes 200pcs/box 158*265*60 285*330*320 10.5 11.5
7.48”x14.17” 190x360mm 10boxes 200pcs/box 192*365*60 380*320*400 17.5 18.5
7.87”x14.17” 200*360mm 5boxes 200pcs/box 202*365*60 220*320*380 9.5 10.5
9.06”x15.55” 230x395mm 5boxes 200pcs/box 232*400*60 320*255*420 12.5 13.5
11.81”x15.55” 300x395mm 5boxes 200pcs/box 302*400*60 320*320*425 15.5 16.5
12.01”x16.93” 305x430mm 5boxes 200pcs/box 307*435*60 450*320*325 16.5 17.5
1.medical grade 60gsm paper with blue /green52um thickness film.
